Key Features

The new facility will be built as a single building. With everything under one roof, once inside, families and groups will be able to move with ease between the arenas, aquatics and commercial spaces.

Key features include:

• 8 lane, 25 metre competitive pool
• 1 metre and 3 metre spring diving boards
• 200 seat capacity for viewing area

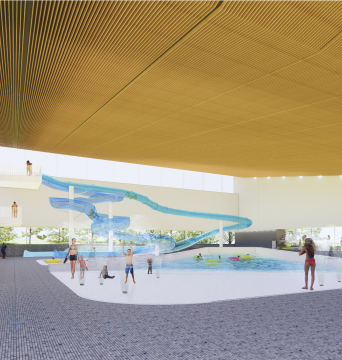

• Combined leisure, splash and wave pool
• Lazy River
• Two Water Slides
• Whirlpool
• Multi-purpose room

The twin arenas will be 77,159 square feet with more seating, larger ice surfaces and more dressing rooms compared to our existing capacity at the Kinsmen and Steuart Arenas.

Player Dressing Rooms

8 dressing rooms 500 sq/ft + 2 end dressing rooms 550 sq/ft

For reference, the current number and size of player dressing rooms at the Kinsmen and Steuart Arena are:

Kinsmen          4          660/455 sq/ft
Steuart            4          310 sq/ft

Administration worked with user groups to determine the final size and number of Player Dressing Rooms within the designated 6,720 square feet of space.

Officials Dressing Rooms

2 Officials Rooms 370 sq/ft.

For reference, the current number and size of officials dressing rooms at the Kinsmen and Steaurt Arena are:

Kinsmen          1          162 sq/ft
Steuart            1          99 sq/ft

Administration worked with the Referee association to determine the location, size and number of dressing rooms within the designated 800 sq/ft of space.

Seating

• South Arena 264 seats and 7 spaces for wheelchairs = 271
• North Arena 510 seats and 12 spaces for wheelchairs = 522
• North and South Arena 90 standing room each

Rink Surface

• 2 NHL size 200 x 85ft rinks

Pictured Below: 660Sq/ft Dressing Room at the Great Plains Centre in Calgary (left) and 650Sq/ft Kinsmen Arena Dressing Room #1 (right)

Pictured Below: 162 sq/ft Referee Dressing Room at Kinsmen Arena (left) and 400 sq/ft Meadows Centre Referee Dressing Room (right)

The common area of the facility will be 14,700 square feet which includes a multipurpose room that can be booked for birthday parties and other events. This will allow for a large common area with seating and 2000 square feet of leasable space.

Food Service and Retail Sales

The new facility will have a City-operated main concession service which will include a traditional menu, similar to what is offered at other City-operated facilities. An Expression of Interest has also been released to invite interested businesses to submit proposals for retail sales and/or additional food service to compliment the concession offerings. Opportunities will also be available to "pop-up" vendors to offer food services that compliment the main concession. Similar to other minor sports facilities in the province, liquor consumption and sales will be offered as part of the City-operated concession and permitted on the arenas side only. This will add to the facilities revenue while meeting public expectations.

A new 4500 seat Arena and Event Centre has been incorporated in the conceptual designs for the new Centre.

Horseshoe Design

The main concept design feature for the large arena is the shape of the facility. The Horseshoe 2-level concept has been approved and is preferred because:

• Most seats are as close as possible to the sport floor;
• Seating is good for concerts because of amphitheater shape;
• Minimal seat loss for end stage concert;
• Ample back of house space;
• No parking stalls will be lost with this design; and
• Smallest long span distance for high roof structure means it is more cost-effective.

 A minimum of 1214 parking stalls will serve the single facility including the twin arenas, aquatics and large arena.

Throughout the design, accessibility has been a consideration prioritized by the steering committee and the project architects have extensive experience in designing facilities according to modern accessibility standards. Features included in the new facility:

• Accessibility included in the building design
• 30% more handicap parking stalls than required by bylaw
• Front row handicap parking stalls with access ramps
• Level grade main entrance with power doors
• Wheelchair and Companion Rink seating at different levels of the facility including at ice level, lobby seating and in the upper concourse
• Elevator access to upper level
• Wheelchair Pool side viewing area
• Wheelchair accessible change rooms and washrooms
• Zero entry access to leisure pool, whirlpool and lazy river
• Dedicated pick-up/drop-off areas for taxi’s, transportation providers, etc.

The following items we have been incorporated into the design to make the carbon footprint smaller:

• Energy modelling is exceeding NECB 2017 (National Energy Code of Canada) efficiency by 12.1%
• High Efficiency Boilers.
• High Efficiency LED lighting with occupancy detection.
• Heat Recovery from the Ice Plant to in-floor heating in lobby and rink seating areas.
• High Efficiency Envelope – Insulation, seals, doors and testing.
• Argon filled low E double glazing windows.
• Variable Frequency Drive Motors.
• Water Conservation – Efficient Plumbing Fixtures.
